Nieuwe maatstaf in encodertechnologie

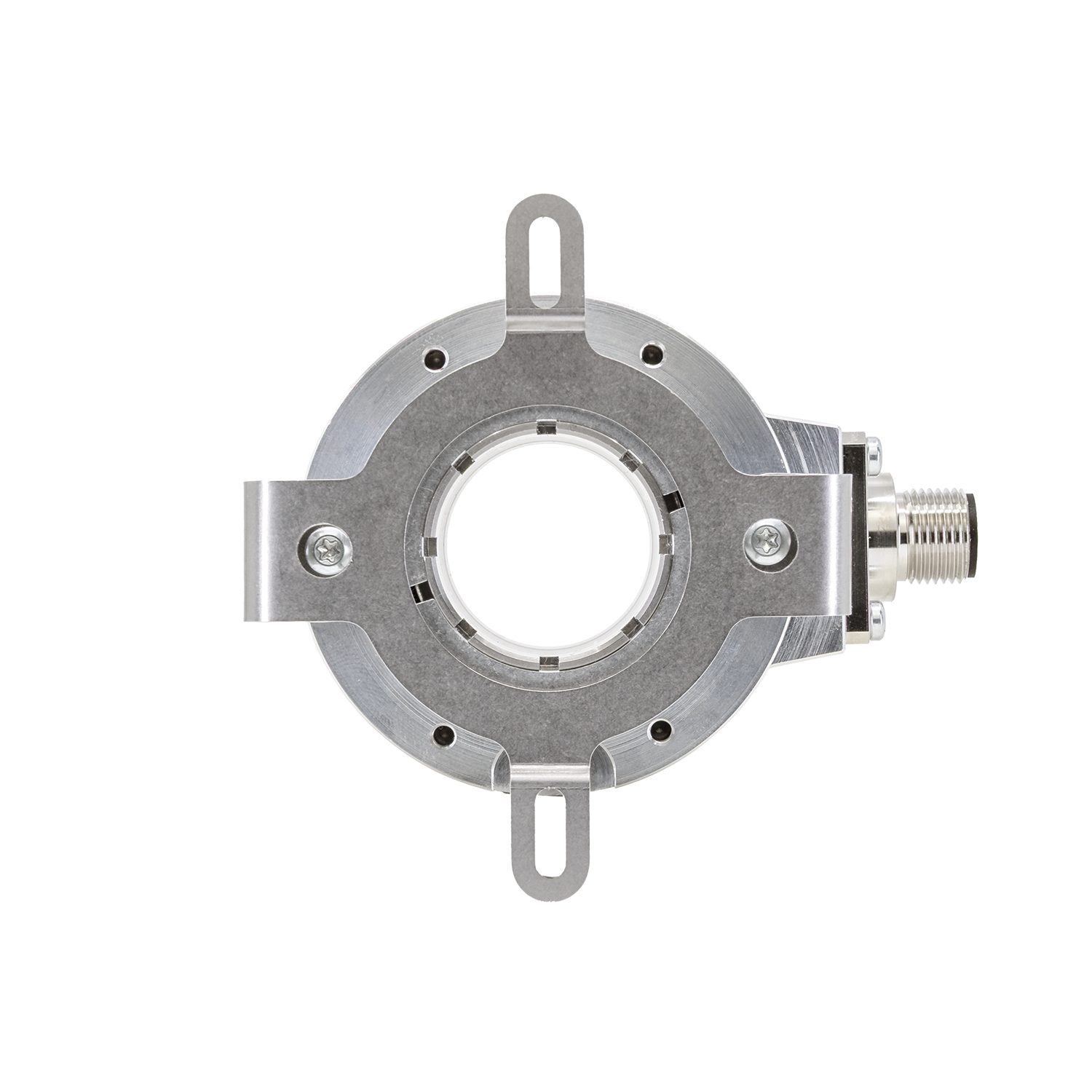

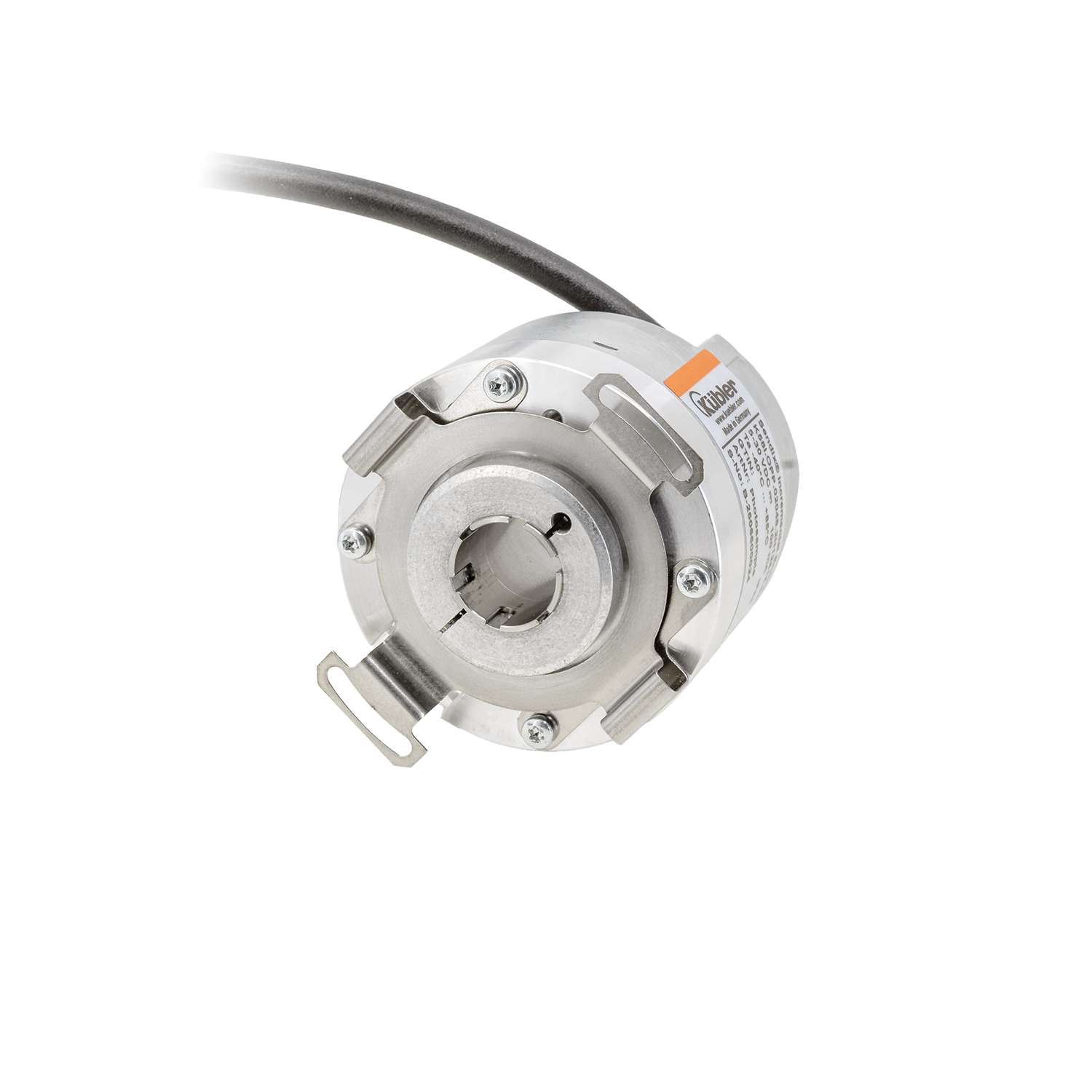

De nieuwe Sendix encoders zijn gebaseerd op state-of-the-art sensor- en elektronische componenten en een robuuste metalen codeschijf. De incrementele Sendix K58-encoders met resolutie tot 5.000 pulsen per omwenteling bieden een hoge betrouwbaarheid. De 58 mm behuizing met een uniform design voor alle varianten vereenvoudigt het systeemontwerp.
Eén model en behuizing voor alle toepassingen. Vaste as of holle as? Ook in hetzelfde model beschikbaar.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type | 6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 12 mm shaft, with flat surface 1/4 ” shaft, with flat surface 3/8 ” shaft, with flat surface 6 mm hollow shaft, through 8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 16 mm hollow shaft, through 20 mm hollow shaft, through 22 mm hollow shaft, through 24 mm hollow shaft, through 25 mm hollow shaft, through 1/2 ” hollow shaft, through 1 ” hollow shaft, through |
| Flange type | Synchro flange / Servo flange Clamping flange Square flange Spring element, long Stator coupling Torque brackets long Ø 58.00 mm |
| Working temperature | -40 °C … +85 °C |
| Protection level | IP65 IP66 IP67 |
| Connection types | Radial cable Tangential cable M23 connector axial M23 connector radial M12 connector |
| Max. rotational speed | 12.000 min-1 |
| Weight | 400 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Power supply | 5 V DC 15…30 V DC |
| Interfaces | Gegentakt TTL / RS422 |
| Options | |
|---|---|
| on request |
|
